Switch HV Circuit Breaker Tester for Gas Testing and Quick Gas Saving

Name: Switch HV Circuit Breaker Tester for Gas Testing and Quick Gas Saving
Brand: XZH TEST
Price: 1 USD

China Switch HV Circuit Breaker Tester for Gas Testing and Quick Gas Saving wholesale

Brand Name : XZH TEST

Model Number : XHWS303

Certification : ISO, CE

Place of Origin : Xi'an, Shaanxi, China

MOQ : 1 unit

Payment Terms : T/T

Supply Ability : 1000pieces/Year

Delivery Time : 5-8 days

Packaging Details : wooden case

Model NO. : XHWS303

Customized : Customized

Features1 : Quickly Save Gas

Features2 : Self-Locking Connector

Features3 : Data Storage

Features4 : RS232 Interface

Features5 : Built-in Power Supply

Transport Package : Wooden Box with Foam Inside

Customization : Available

Warranty : 12 Months

Test Mode : Saved Test

Contact Now

XHWS303 Sf6 Switch Hv Circuit Breaker Tester for Gas Testing and Quick Gas Saving

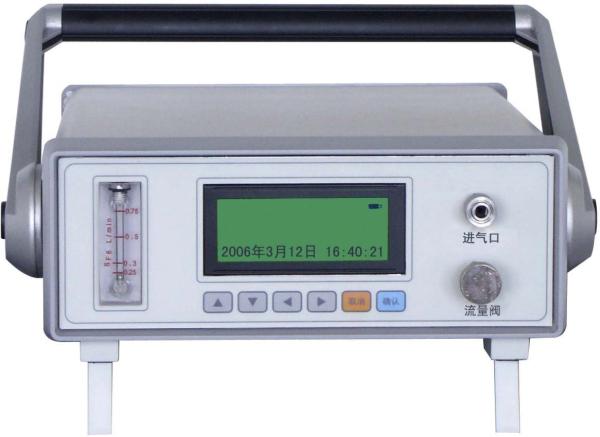

XHWS303 SF6 Sulfur hexafluoride water tester

This instrument is used to measure the moisture parameters of SF6 gas in high-voltage circuit breakers and GIS combined electrical appliances. The LCD screen directly displays dew point, slight water, ambient temperature, ambient humidity, battery power, time and date, etc.

Switch HV Circuit Breaker Tester for Gas Testing and Quick Gas Saving

Main feature:

a. Portable design: lighter, carry and easy to use.
b. Rapid measurement: the instrument is turned on without waiting.
c. Save gas: about 2L (101.2kPa).
d. The self-locking head imported from Germany, reliable, does not leak.
e. Can store 50 sets of experimental data.
f. The LCD screen shows the dew point, the micro-water, ambient temperature, humidity, time and date, battery level.
g. Built-in lithium battery
Main technique:

Dew point	Range	-55 ºC~+20 ºC
	Accuracy	±2ºC
	Test time(+20ºC)	< 3 min
Ambient temperature	-40ºC~+60ºC
Ambient humidity	0~90% RH
Power supply	AC 220V
	Built-in lithium battery
Battery performance	Work continuously for more than 10 hours.
Weight	3kg
Size	250×100×300mm3
Use temperature	-40ºC~+80ºC
